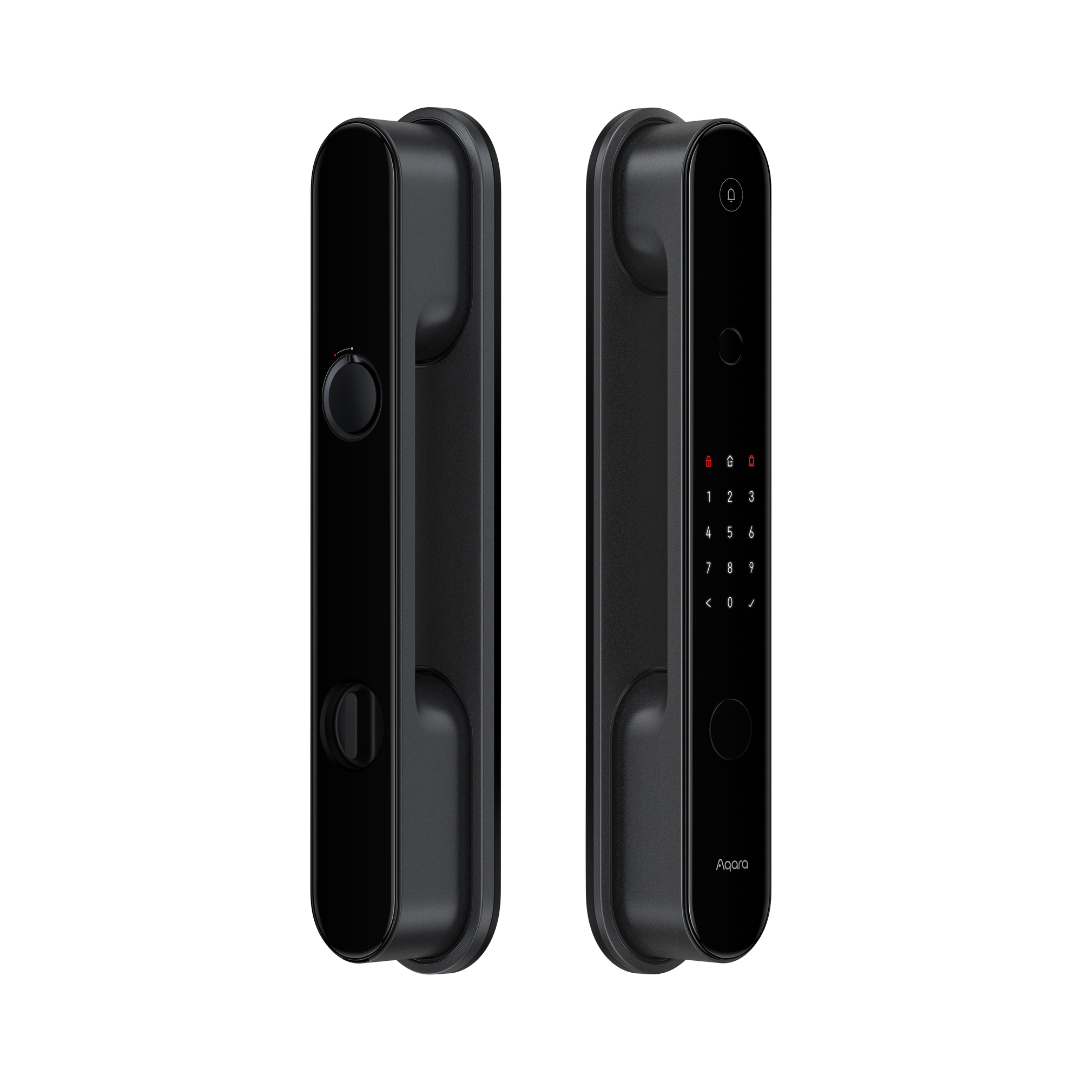

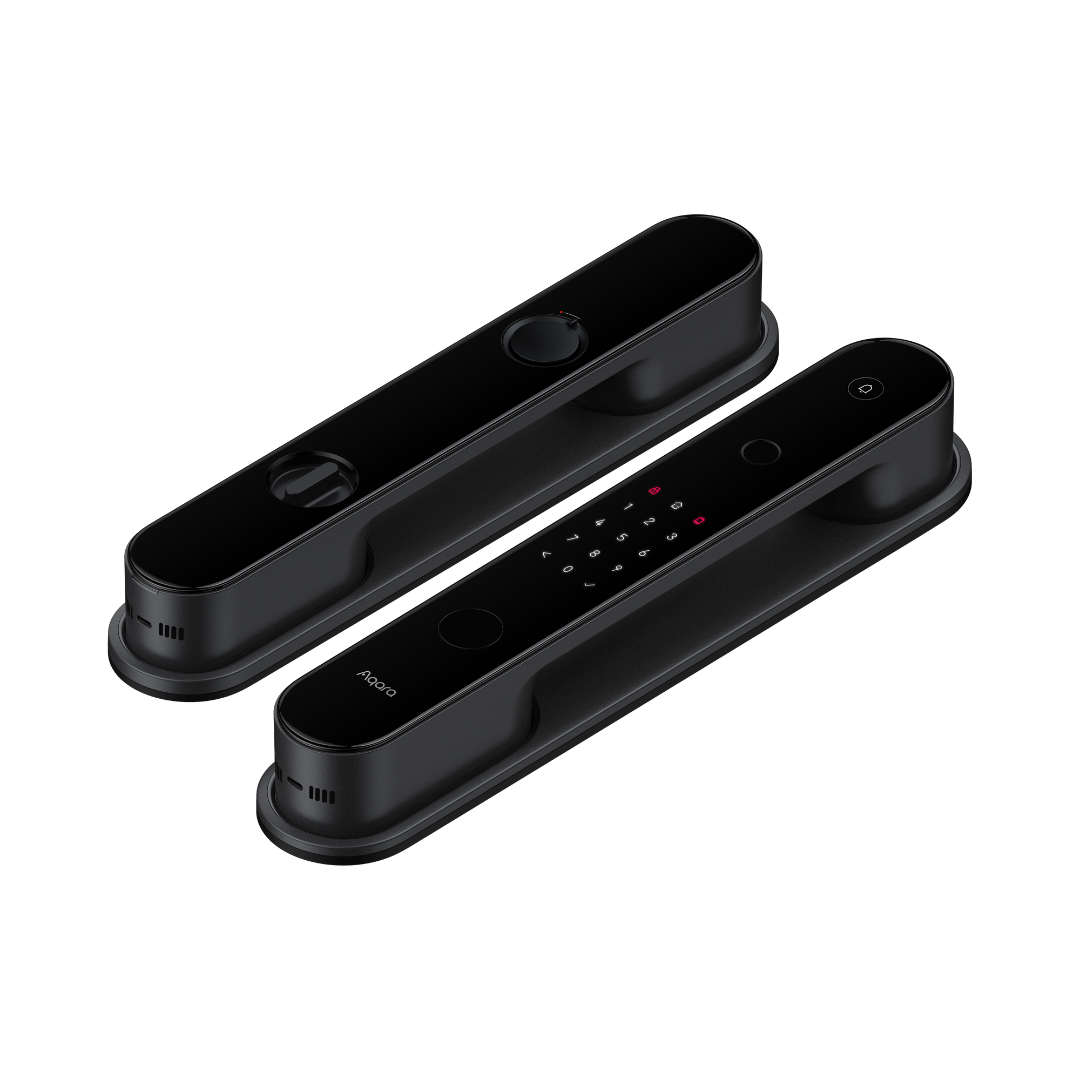

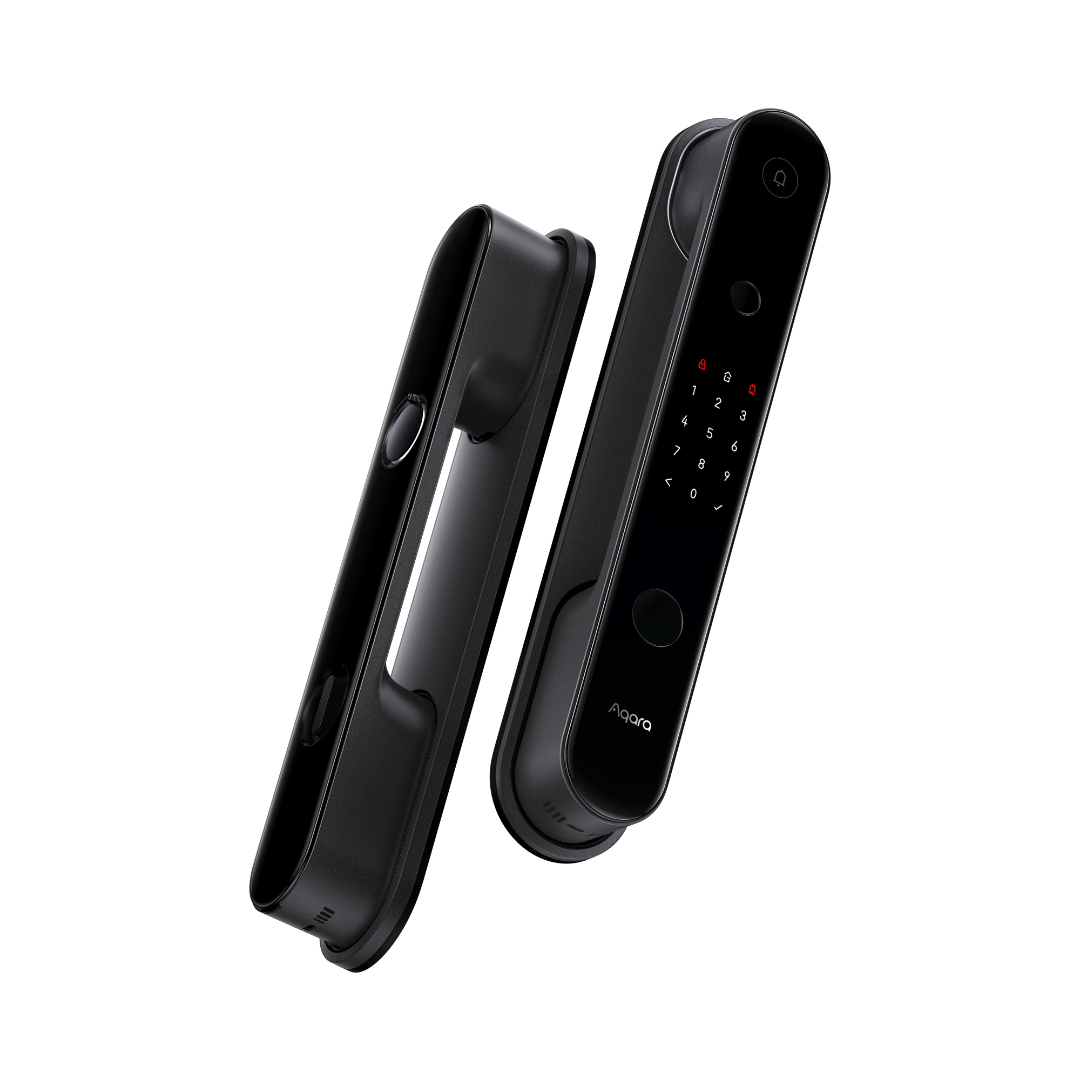

Aqara Smart Door Lock D100

The flagship fully automatic door lock with premium design.

The Aqara Smart Door Lock D100 incorporates multiple
ways of unlocking including: fingerprint, password, bluetooth
 via mobile phone, NFC and mechanical key. The integrated
 lock body can enable the full-automatic function of opening
 (automatic unlock) at one touch as well as automatic locking.
The door lock is featured with functions such as lock state
 inspection, low battery reminders, lockpicking warning and
error trial warning. Aqara Home and Apple HomeKit are
 supported, which means that the lock can cooperate with
 other smart devices that support Aqara or HomeKit to fulfill
 multiple functions in smart home applications like smart
automation control and alarm.

Key features :

• Fully-Automatic Lock Body: No need to push the handle, the lock
  will open automatically. D100 is our first fully automatic smart door
   lock that is sold globally.

• Google Assistant and HomeKit (incl. Home Key) Support: The Door
   Lock D100 is designed to work with HomeKit including the newest
  Apple Home Key feature and also supports unlocking via Google
  Assistant or Google Home app.

• 1-Year Li-Ion Battery: The newest and more sustainable Lithium-Ion
   battery pack provides for about one year of battery life and is equipped
   with a USB-C port for easy charging.

• 9 Unlock Methods: Permanent, one-time and periodic passwords,
  fingerprint, NFC card, mechanical key, Aqara Home app (via Bluetooth
  or Zigbee), HomeKit (incl. Home Key), Google Assistant.

• Louder Speaker and Doorbell Button: A pair of speakers located
  from both sides of the lock provide a rich and clear sound with an
  output of up to 103 dB, which also grants the D100 with a doorbell
   function.

• Metal Unibody with Premium Design: The D100's housing made
  of glass and metal incorporates the best build quality we can currently
   offer. The lock feels extremely solid and does not have any moving
   parts thanks to its fully automatic lock body.

• Wider Door Thickness Support: The D100 now supports a much
  wider range of door thickness. It can be installed onto the doors
  from 40 to 80 mm.

• Mechanical Key and Emergency Type-C Port: Even if the batteries
  run out, you can still open the D100 by using a mechanical key or by
  charging it via the hidden Type-C port.

• Zigbee 3.0 and Bluetooth Protocols: Zigbee, the most stable and
   reliable smart home technology, is used to support automations
  and cloud integrations, while Bluetooth allows to connect directly
  to the phone.

• Keypad with Away Mode Button: Apart from a keypad that is invisible
   until you touch it, the D100 has a separate Away Mode button that
   can be used in automations.

• Remote Unlock via Aqara Home App: The D100 can now be opened
   remotely via Aqara Home app. For example, you can open the door
  and watch* the delivery person leaving a parcel inside.*

• Remotely-Configurable Passwords and Settings: Finally, the passwords
   and lock settings can be configured remotely via Zigbee, which allows
  the D100 to be used in property rentals or the hotel industry.

• NFC Cards and Protection Covers Included: We have included two Aqara
   NFC cards with enhanced security for even simpler unlocking. Also, we
  have added two detachable covers to protect the user's fingers from being jammed.

• Ergonomic Fingerprint Reader with Sapphire Coating: A fast fingerprint
   reader is embedded into the housing so that your thumb will naturally
   touch it when opening the door.

• Child Lock Switch: The unlock button is coupled with a small unlock
  switch. When it is on, that enhances the protection by not letting small
  children open the door accidentally.

Specifications:

Product Name: Smart Door Lock D100 Zigbee Edition

Product Model: ZNMS20LM

Product Size: 393.8*74.2*58.6 mm

Net Weight: 4.2kg

Power Supply Mode: 2480mAh lithium-ion battery (7.2V),

USB-C emergency power supply (5V)

Wireless Protocols: Zigbee, Bluetooth 5.0, NFC

Fire Rated: No

IP Rating: IP52

Operating Humidity: 0-93% RH, non-condensing

Operating Temperature: -10°C -55°C
